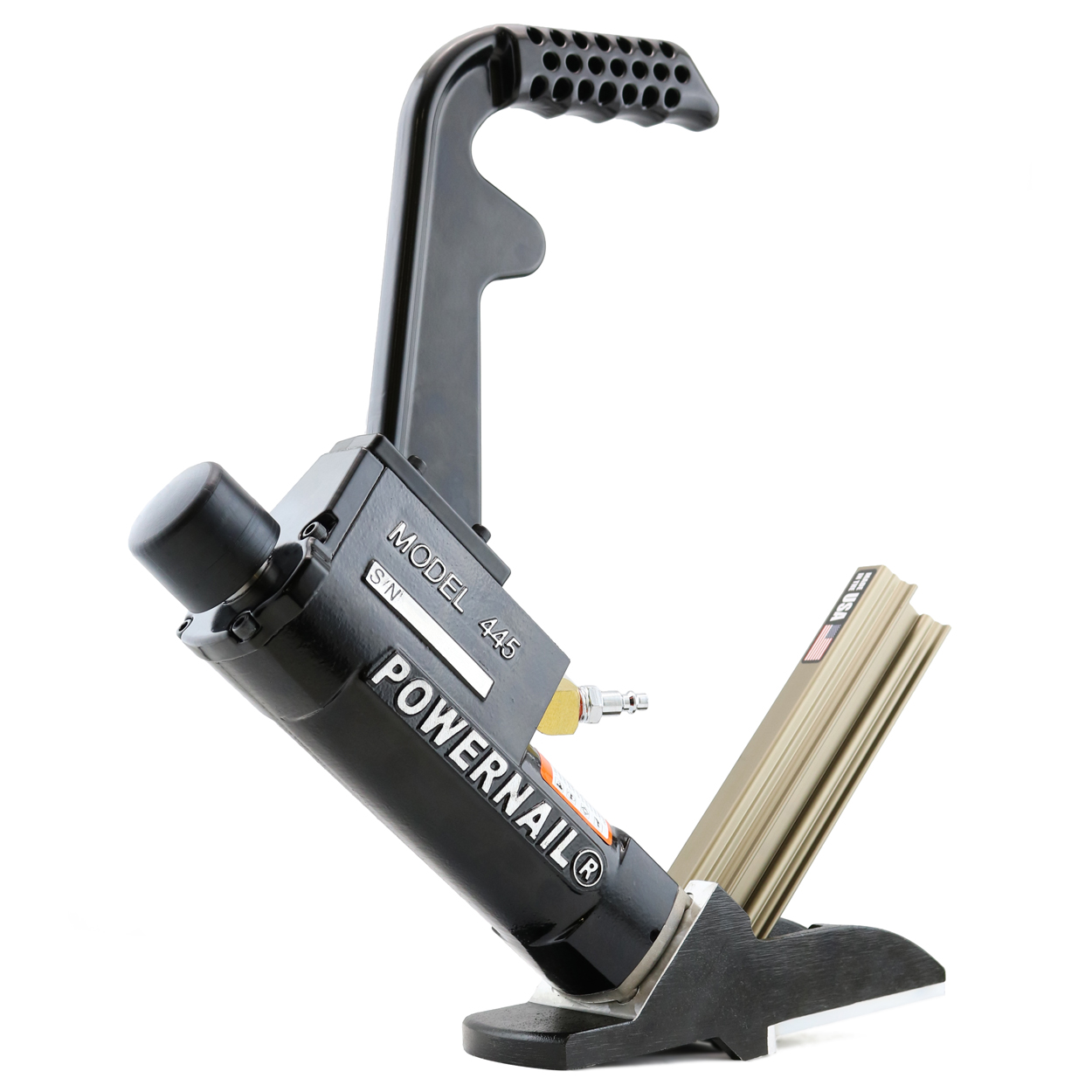

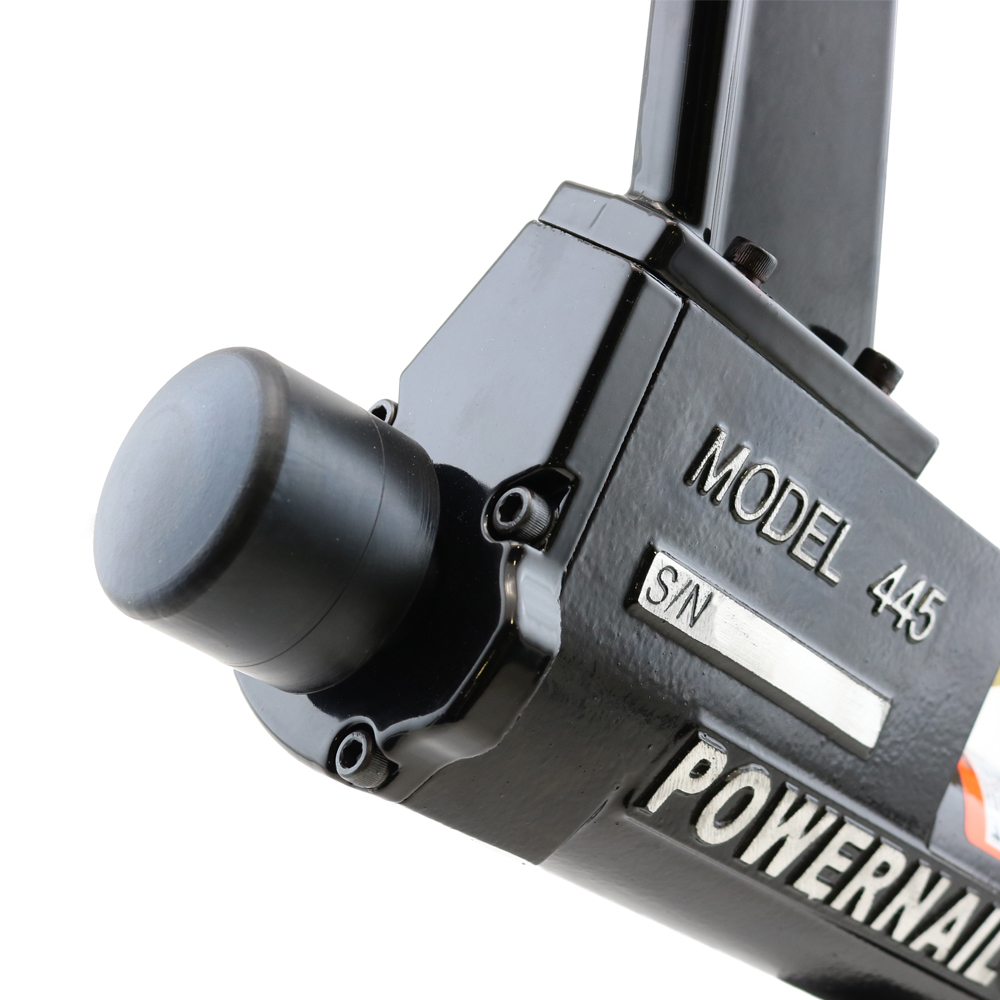

MODEL 445
16-Gauge Hardwood Flooring Nailer
Item # 445LSW 445LLW 445XLSW 445XLLW
Our 445LS 16-gauge Powernailer is the industry standard for installing 3/4” and 5/8” domestic hardwood flooring. This machine embodies Powernail reliability and our commitment to excellence.
FEATURES
SPECIFICATIONS
DOCUMENTATION
FASTENERS
FEATURES
- Made in the USA
- Drives 16-gauge PowerCleats, 1-1/2” to 2” (38mm to 50mm)

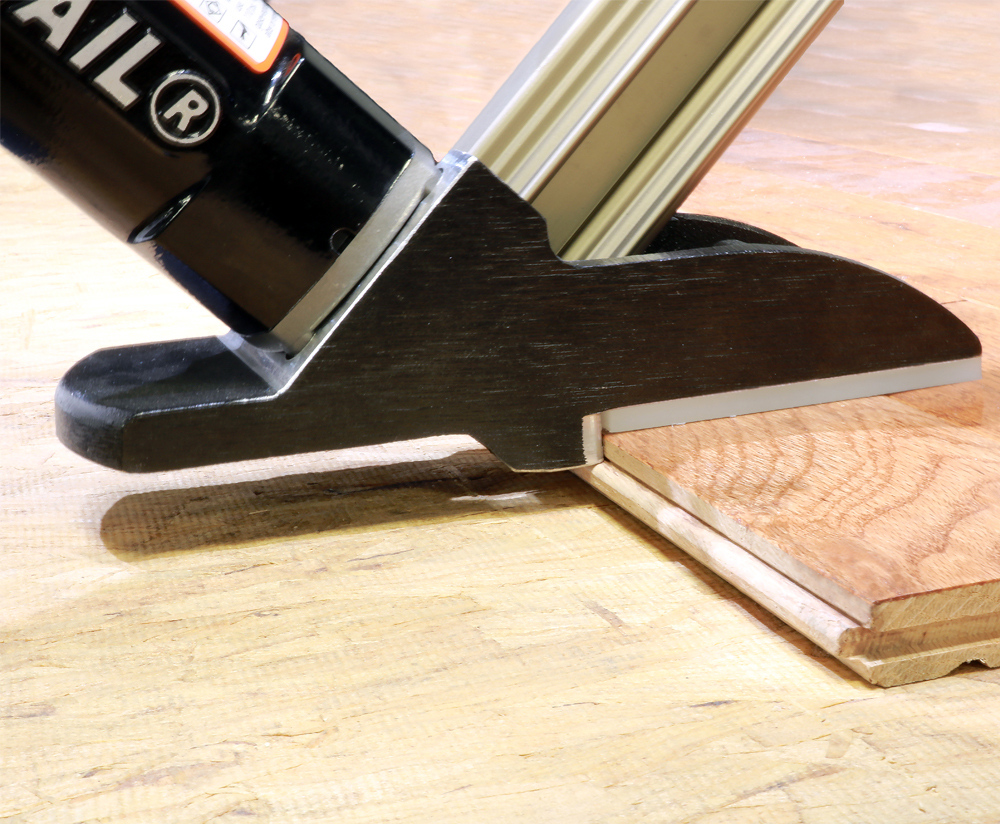

- Installs 5/8” to 3/4” (16mm-19mm) hardwood flooring

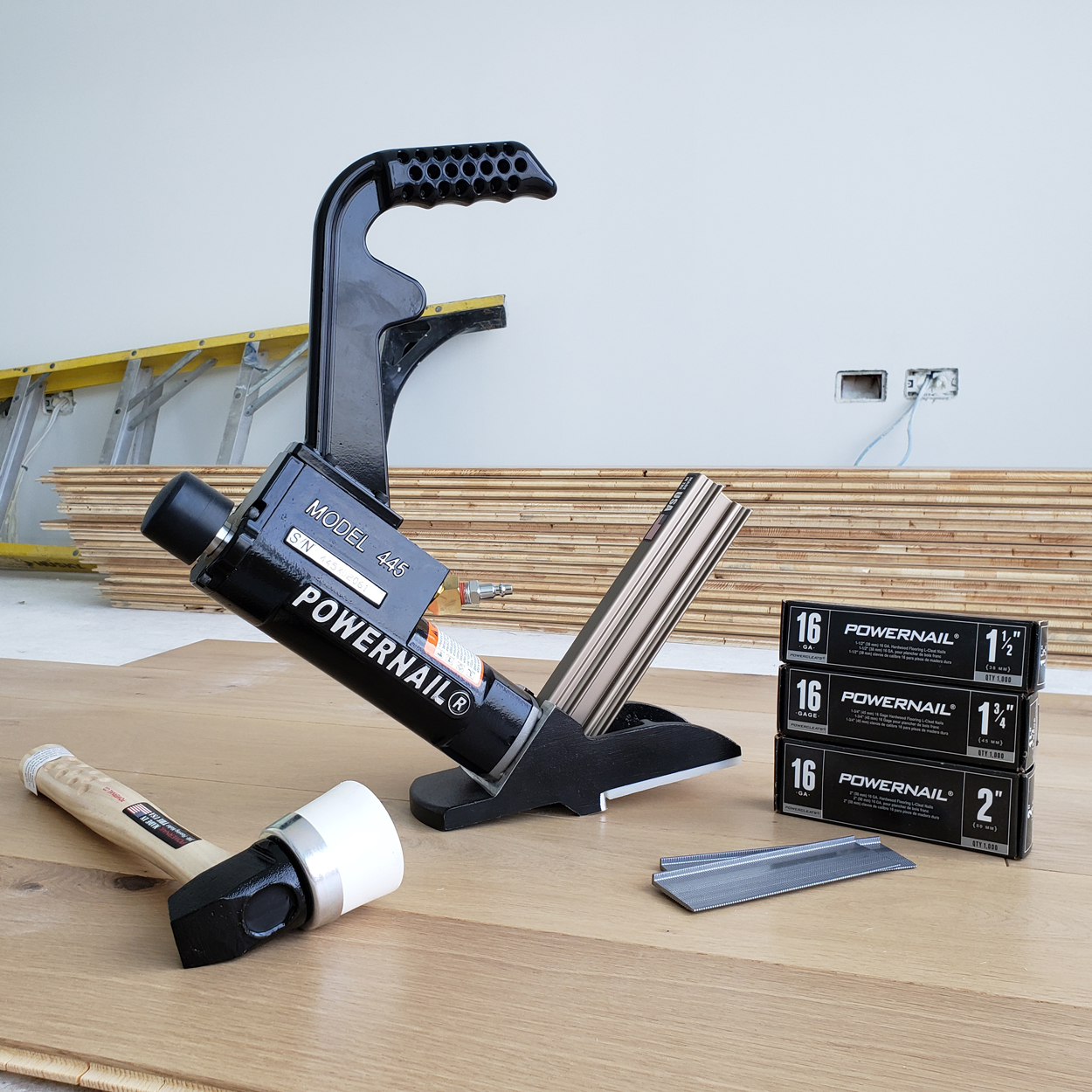

- Includes mallet, oil, wrenches and 1/4” air fitting (3/8” NPT)
- 10-year warranty on body/1-year on parts
Handle Options:
Extra Long Handle: 22 inches (overall nailer height)
Long Handle: 19 inches (overall nailer height)
Channel Options:- Short Channel : 100 cleats capacity
- Long Channel: 200 cleats capacity
SPECIFICATIONS
| POWER TYPE | Pneumatic |
|---|---|
| OPERATING PRESSURE | 80-110 PSI |
| DIMENSIONS | 18″ L x 3″ W x 19″ H |
| WEIGHT | 10.6 lbs |
| MFG. MODEL | 445 |
| MFG. PART NUMBER | 445LSW |
DOCUMENTATION
| MANUAL | 445-MANUAL-REV20190409.pdf |
|---|---|
| LEGACY MANUAL | 445-MANUAL-REV20170213.pdf |
| SCHEMATIC | 445-SCHEMATIC-REV20190409.pdf |
| SPEC SHEET | 445-SPEC-SHEET.pdf |
FASTENERS
16 Gauge Powercleats®
| NAIL LENGTH | 5-PACK PART # | NAIL QTY | 1 PALLET QTY |
| 2″ | L200165 | 5000 (5x1M) | 120 |
| 1-3/4″ | L175165 | 5000 (5x1M) | 120 |
| 1-1/2″ | L150165 | 5000 (5x1M) | 120 |
| 2″ PowerPak | L20016PP | 15,000 | – |
| 1-3/4″ PowerPak | L17516PP | 15,000 | – |
| 1-1/2″ PowerPak | L15016PP | 15,000 | – |
| 2″ Stainless Steel | LSS20016 | 1000 | – |
| 1-1/2″ Stainless Steel | LSS15016 | 1000 | – |
