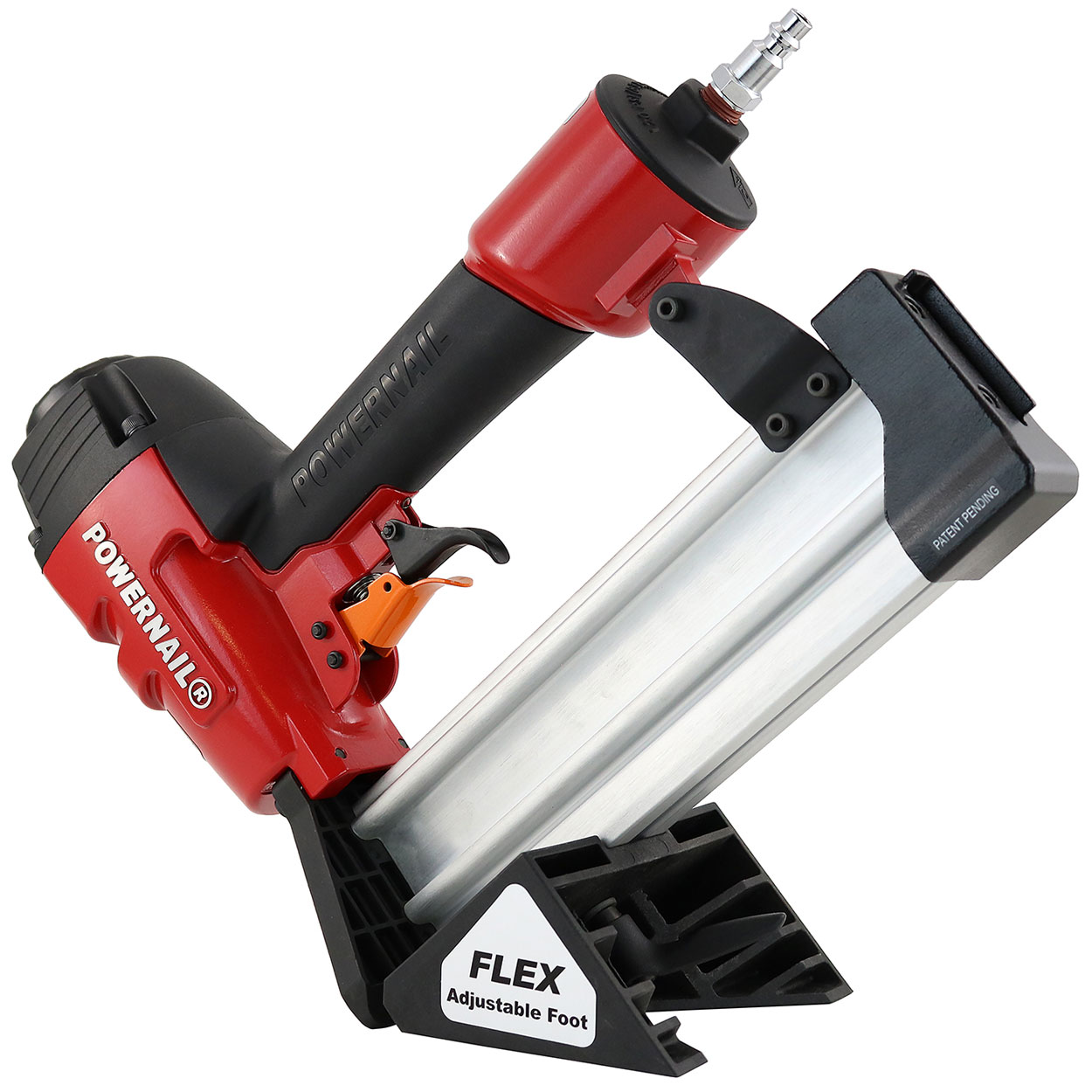

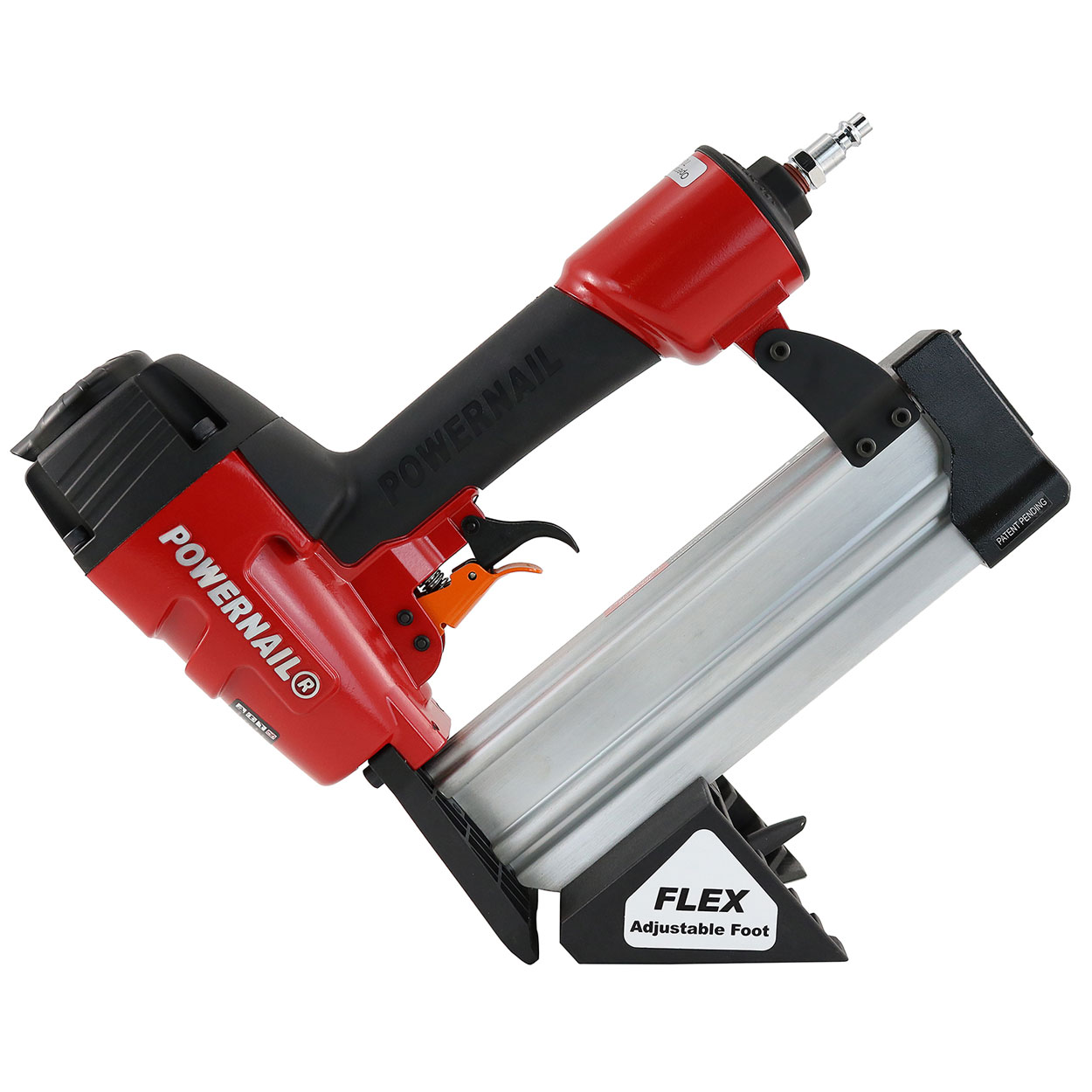

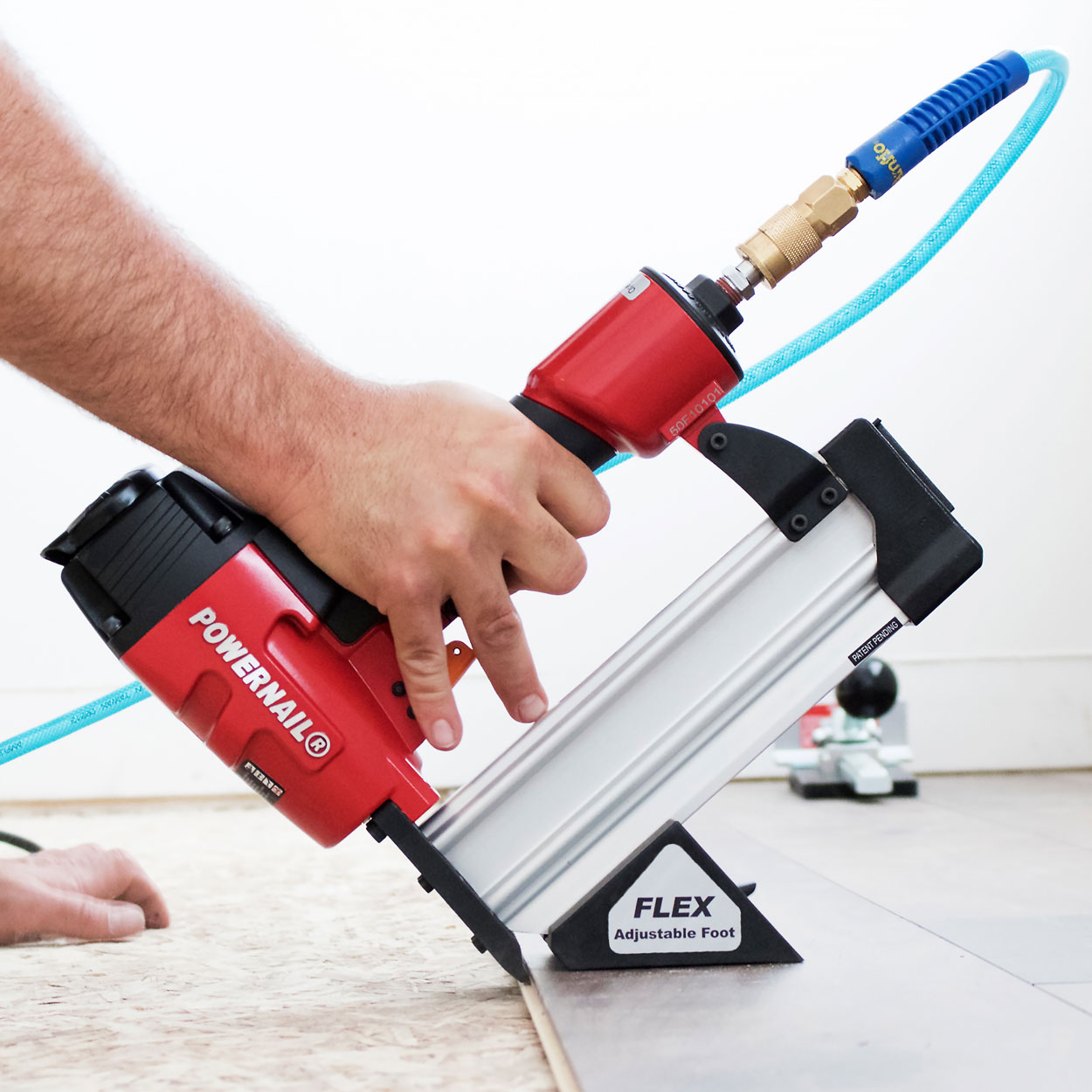

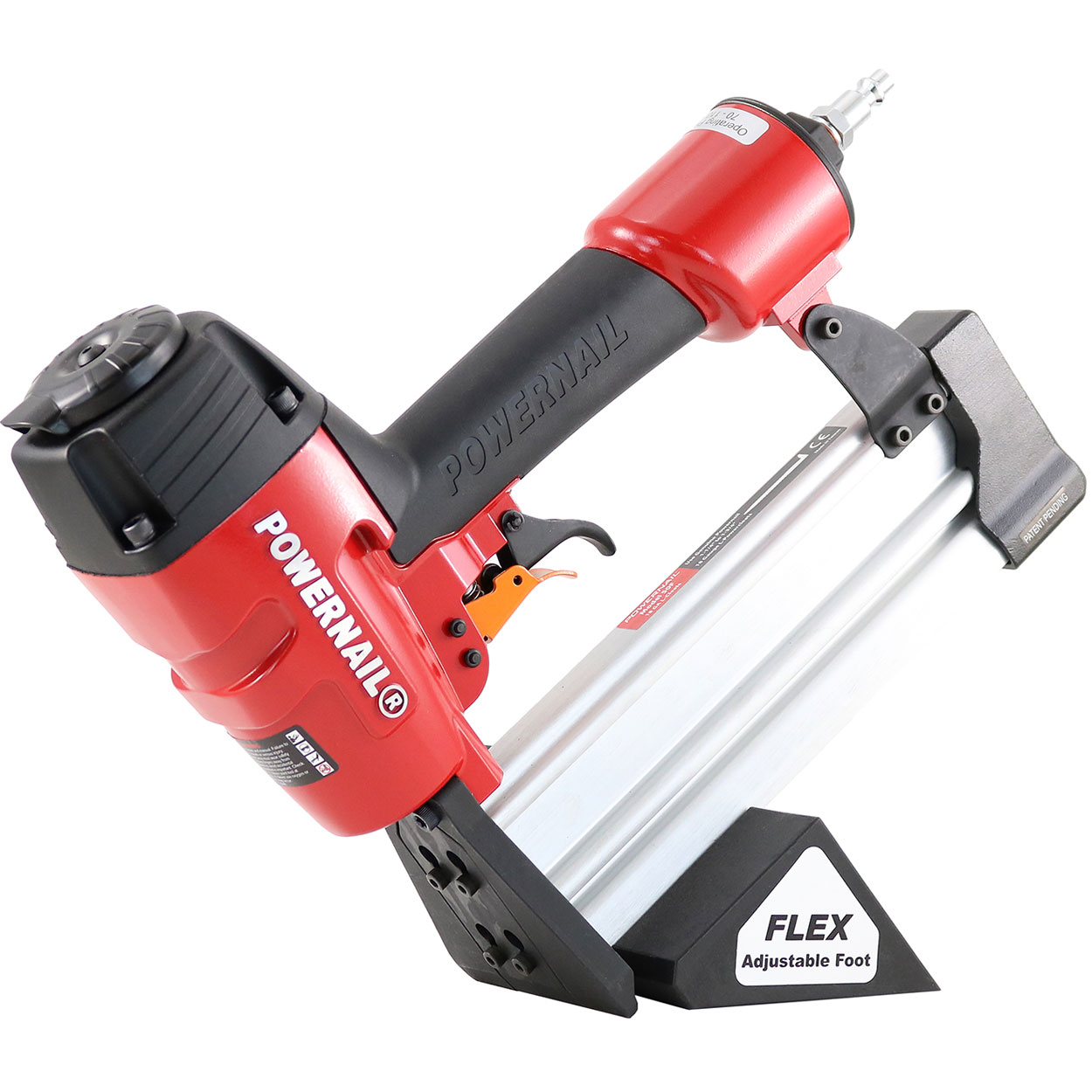

MODEL 50F
18-Gauge Hardwood Flooring Nailer
Item # 50FKIT
The Model 50F, Trigger-Pull cleat nailer is the most advanced 18-Gauge Powernailer in its category. This nailer was designed with a variety of innovative features to work faster, longer and harder than the competition.
The model 50F features trigger-pulled actuation, a one-piece adjustable Flex Foot and a surprisingly compact size. When it comes to fastening today’s top brands of engineered and hardwood flooring, this Powernailer is in a league of its own.
FEATURES
SPECIFICATIONS
DOCUMENTATION
FASTENERS
FEATURES
- Installs 3/8” to 3/4” (10 mm to 19 mm) hardwood, engineered and exotic flooring
- Drives 18-gauge PowerCleats, from 1” to 1-3/4” (25mm to 45mm)
- Compact design for installation close to walls and in tight spaces
- Adjustable FLEX Foot for quick and easy adjustment (no tools required)
- Unique nose fits todays wide variety of profiles including tongue & groove and interlocking plank
- Quick and easy jam clearing
- Directional exhaust
- Safety trigger
- Includes a tap block and carrying case
- 1-year warranty
SPECIFICATIONS
| POWER TYPE | Pneumatic |
|---|---|
| OPERATING PRESSURE | 70-120 PSI |
| DIMENSIONS | 12″ L x 4.25″ W x 12.5″ H |
| WEIGHT | 5.75 lbs |
| MFG. MODEL | 50F |
| MFG. PART NUMBER | 50FKIT |
DOCUMENTATION
| MANUAL | 50F-MANUAL-REV200402.pdf View Manual |
|---|---|
| SCHEMATIC | 50F-SCHEMATIC-REV190124.pdf |
| SPEC SHEET | 50F-SPEC-SHEET.pdf |
FASTENERS
18 Gauge Powercleats®
| NAIL LENGTH | 5-PACK PART # | NAIL QTY | 1 PALLET QTY |
| 1-3/4″ | L175185 | 5000 (5x1M) | 120 |
| 1-1/2″ | L150185 | 5000 (5x1M) | 120 |
| 1-1/4″ | L125185 | 5000 (5x1M) | 120 |
| 1-3/4″ PowerPak | L17518PP | 15,000 | – |
| 1-1/2″ PowerPak | L15018PP | 15,000 | – |
| 1-1/4″ PowerPak | L12518PP | 15,000 | – |
