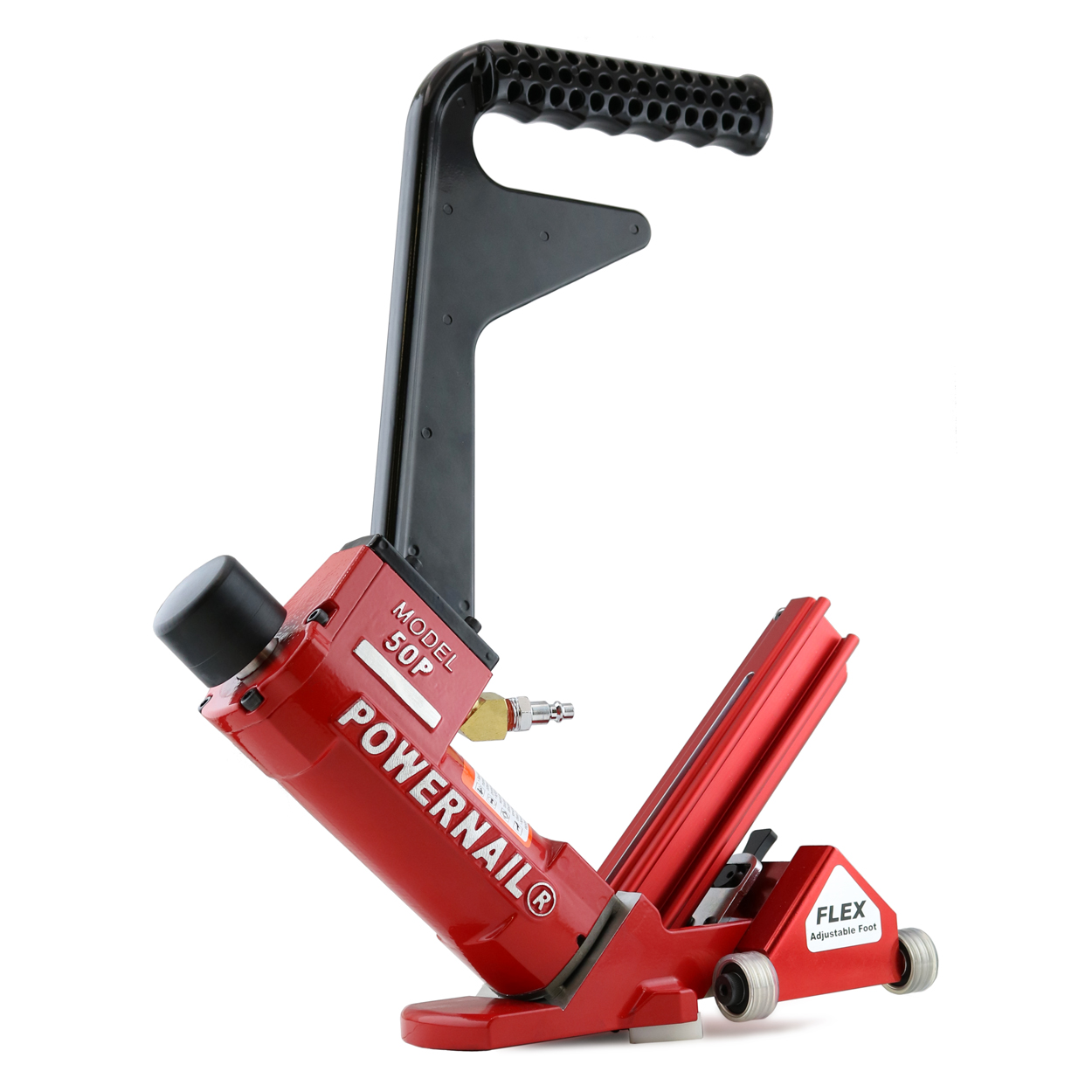

MODEL 50P FLEX POWER ROLLER
18-Gauge Hardwood Flooring Nailer

Item # 50PFLEXPRXLSW 50PFLEXPRW 50PFLEXPRXLLW 50PFLEXPRLLW

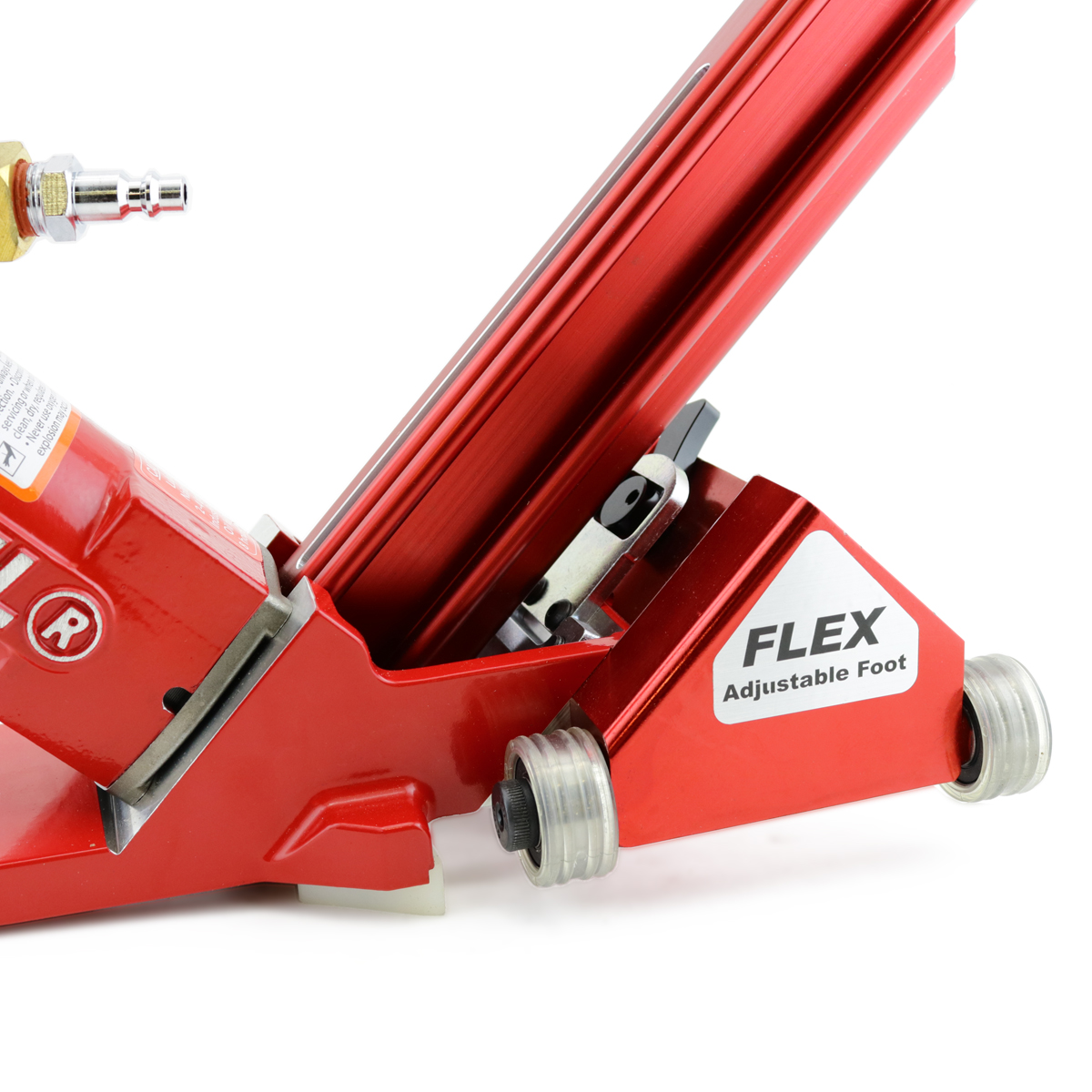

When comfort and control are a priority, you can depend on the Powernail Model 50P Power Roller. Outfitted with the new Tri-Glide Power Roller, this cleat nailer now delivers speed, comfort and accuracy while protecting delicate edges and finishes. The FLEX Power Roller foot adjusts from 3/4″ to 3/8″ and is suitable for domestic and exotic hardwoods.
50P Series nailers use a thinner 18 Gauge cleat that is less likely to split the tongue on thinner woods. It is also recommended for flooring that is a very hard species like hickory. Many of the hard exotics available today require a thinner cleat to penetrate without splitting the tongue.

FEATURES
SPECIFICATIONS
DOCUMENTATION
FASTENERS
FEATURES
- Installs 3/4″, 5/8″, 1/2″ and 3/8″ (19 mm to 9 mm) hardwood, engineered and exotic flooring

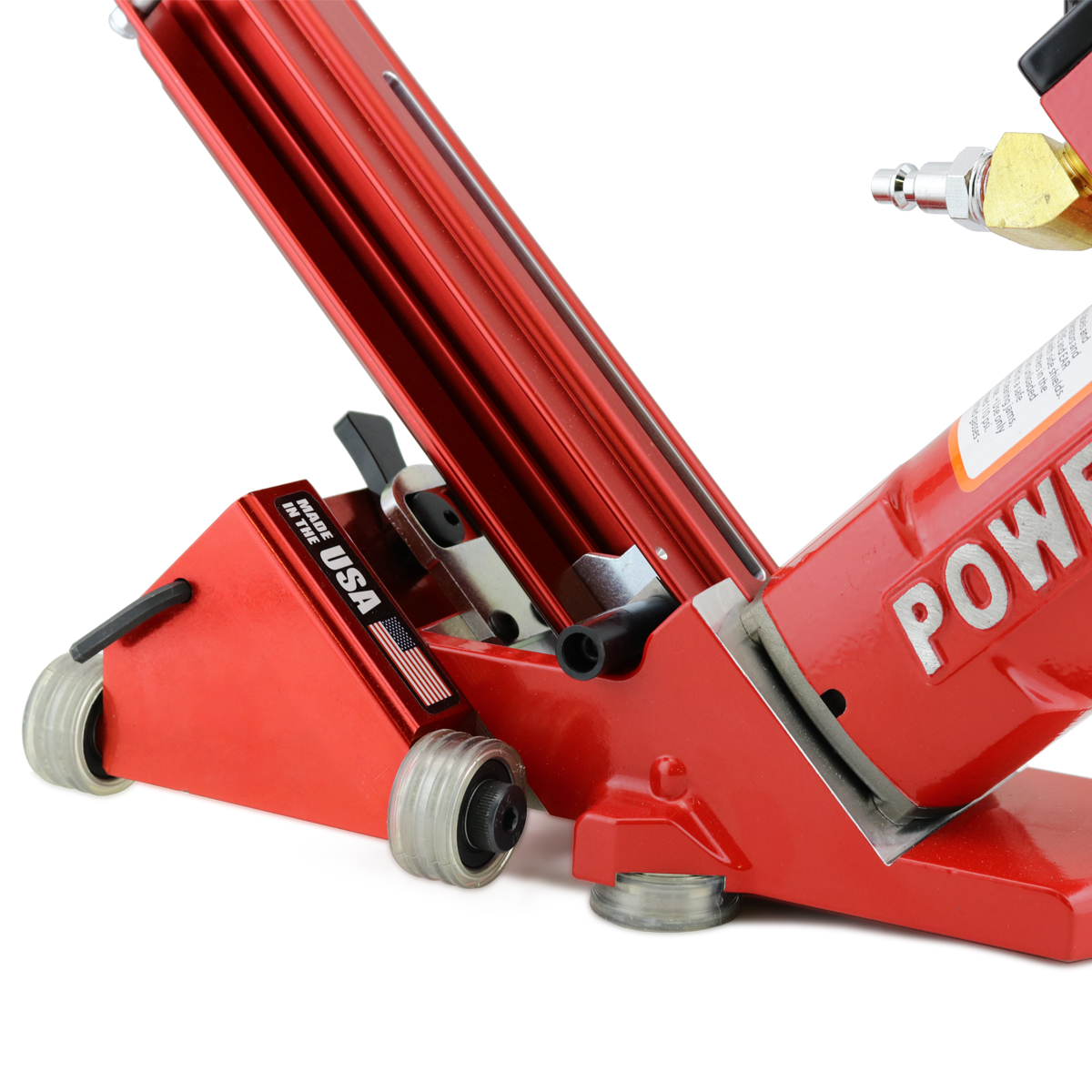

- The all new adjustable Tri-Glide Power Roller
- Prevents edge-crush and fracturing of prefinished floor
- Uses Powercleats 1-3/4″ to 1″ (45 mm to 25 mm)
- No Pads or Shims

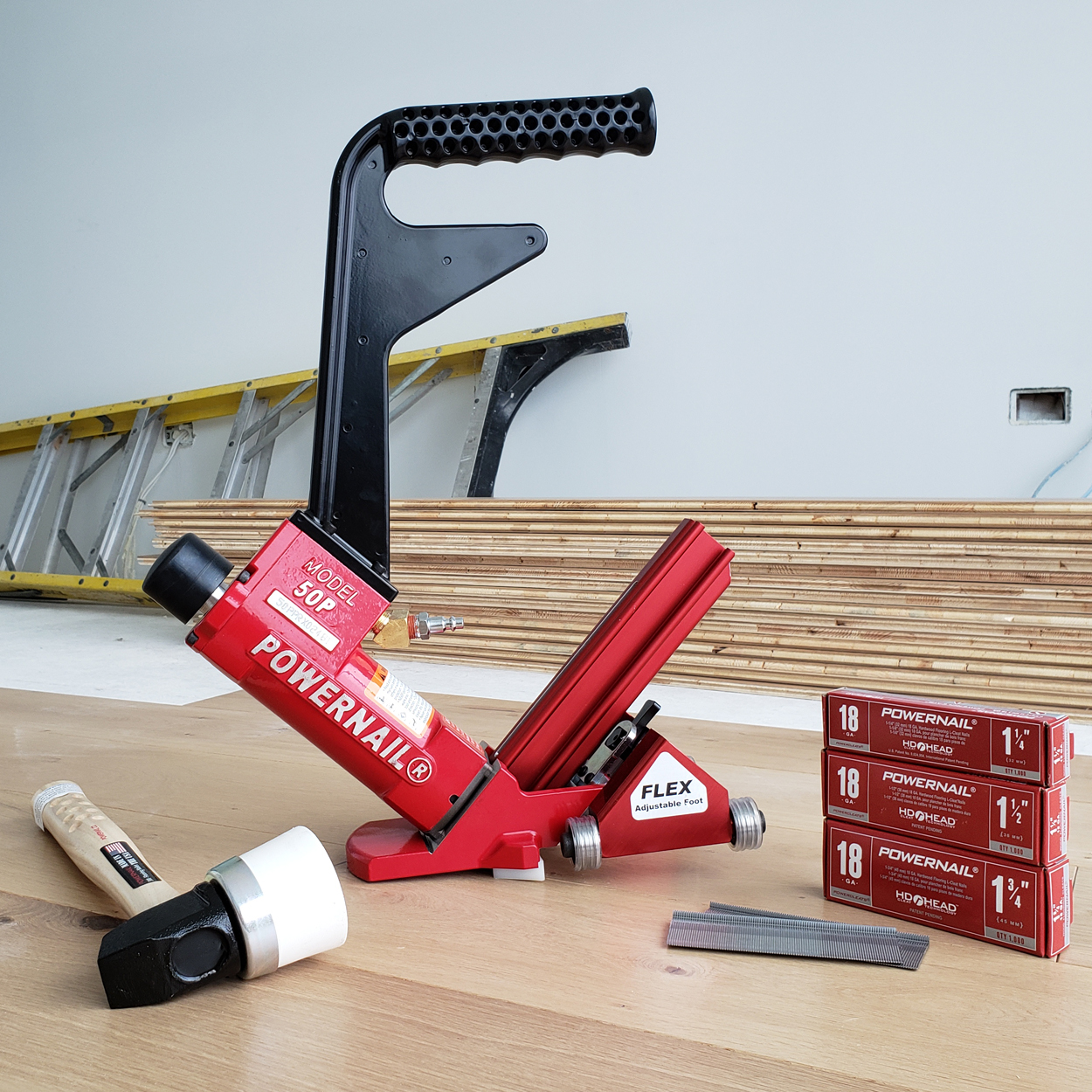

- Includes 3MI Mallet
- 1 year warranty on entire nailer
- 10 year warranty (on body only)
Handle Options: - Extra Long Handle: 21 inches (overall nailer height)
- Long Handle: 17 inches (overall nailer height)
Channel Options: - Short Channel : 100 staples capacity
- Long Channel : 200 staples capacity
SPECIFICATIONS
| POWER TYPE | Pneumatic |
|---|---|
| OPERATING PRESSURE | 80-110 PSI |
| DIMENSIONS | 16″ L x 5.5″ W x 17″ H |
| WEIGHT | 12 lbs |
| MFG. MODEL | 50P FLEX Power Roller |
| MFG. PART NUMBER | 50PFLEXW |
DOCUMENTATION
| MANUAL | 50PFLEXPR-MANUAL-REV20200303.pdf |
|---|---|
| LEGACY MANUAL | 50PFLEXPR-MANUAL-REV20180419.pdf |
| SCHEMATIC | 50PFLEXPR-SCHEMATIC-REV20190418.pdf |
| SPEC SHEET | 50PPR-SPEC-SHEET.pdf |
FASTENERS
18 Gauge HD Powercleats®
| NAIL LENGTH | ITEM # | NAIL QUANTITY | 1 PALLET QUANTITY |
| 1-3/4″ | L175185 | 5000 (5x1M) | 120 |
| 1-1/2″ | L150185 | 5000 (5x1M) | 120 |
| 1-1/4″ | L125185 | 5000 (5x1M) | 120 |
| 1-3/4″ PowerPak | L17518PP | 15,000 | – |
| 1-1/2″ PowerPak | L15018PP | 15,000 | – |
| 1-1/4″ PowerPak | L12518PP | 15,000 | – |
